Supercharger Rebuild Kit Toyota TRD 4.0L V6 1GR-FE Tacoma FJ Cruiser 4Runner
Supercharger Rebuild Kit Toyota TRD 4.0L V6 1GR-FE Tacoma FJ Cruiser 4Runner
Fits: 2005-2015 Toyota Tacoma and 2007-2009 Toyota FJ Cruiser
These kit prices are plus shipping and packaging costs. These costs will be calculated and invoiced when the order is confirmed for the shipping address.
Option #1:
HSL190009 Rebuild Kit WITH UPFRONT CORE EXCHANGE
Upfront rotor assembly core exchange. Just after the order is placed you would ship in your used rotor assembly. The kit ordered will ship after the used rotor assembly has been received once it is ready. Estimated shipping date will be determined once the used rotor assembly is checked in.
Option #2:
HSL190010 Rebuild Kit WITH CORE DEPOSIT
This kit will be built up for your order and when ready will ship out. With the return of a rebuildable core rotor assembly, the paid core deposit is refundable up to the core deposit amount paid, and core condition affects refund amount. The refund will be limited to the portion of the payment that is designated the deposit.
This kit contains a READY TO INSTALL Embree Specialty Machine re-manufactured, timed, with all tolerances set rotor bearing assembly. This item is Quality Control checked. As an informed DIY Do-It-Yourself person, you are purchasing this component to complete the rebuild service yourself. You are making the decision to take upon yourself the responsibility of the successful outcome. If you decide at any point to have a professional perform this service, send it in. The rotor assembly is correct when it leaves the shop. Damage that occurs after the point where it is packaged for shipment from us, is completely on the mechanical person performing the rebuild service, whether you or your mechanic. No refunds will be given however, if you run into issues, contact us first because we can help. Order will be confirmed with you. No cancellations after order is confirmed because item will be custom built for your order. May ship in 2 boxes. Unexpected extended timeframe 4-12 weeks due to govt. Call for pricing and availability.
Contact us for more information about the custom pulleys we make. Check out the picture of our custom pulley in this item. Pulley shown is not included in this item purchase. The one pictured may not be the exact one available for this vehicle.
New re-manufactured rotor assembly that is ready to install your supercharger housing. The rotor assembly comes with new rotor coating, timing gears installed and included are the new parts kit with oil and sealer for Do-It-Yourself completion of Complete Supercharger Rebuild Service. Buy this supercharger rebuild kit because you want to send your rotor assembly in for service before this item ships instead of paying the core rental deposit. To have this supercharger rebuild kit ship before you send in your used rotor assembly for exchange, buy the related item that includes the core deposit.
ATTENTION!!! IMPORTANT NOTE: IF YOU NEED OUR KIT TO SHIP BEFORE YOUR CORE ROTOR ASSEMBLY ARRIVES, BUY THE OPTION THAT INCLUDES THE DEPOSIT TO ADD THE CORE EXCHANGE DEPOSIT. When you buy this item WITHOUT THE DEPOSIT you will need to send your rotor assembly in for exchange prior to this item shipping out.
Buy this item to receive a Do-It-Yourself Supercharger Rebuild Service Kit.
If you choose the option with the upfront core exchange, within a few days of this purchase, you should ship your used core rotor assembly to us for exchange. If you have any concerns about the condition of your supercharger and the cost of damages, send us a photo to help determine the condition of the core. The core deposit will be refunded after receipt of a rotor assembly that can be re-manufactured for someone else. Charges will be incurred if there is excessive wear or damage that can not be corrected during the normal re-manufacturing process. If you do not want to send a core rotor assembly in for exchange, do not purchase this item without the deposit. The other option with the deposit included in the price is the choice to purchase to buy the rotor assembly outright.
After your rotor assembly is received and inspected for exchange this item will be shipped once ready.
Send your rotor assembly right away when you purchase this item. We will be preparing your item while your rotor assembly travels in. Once we receive it, it will be checked in to make sure it is reusable for a future customer. We will ship our kit out as soon as it is ready. Choose this option if you want to avoid placing a core deposit. Be sure to ship your rotor assembly right after you purchase this item. In this way you can avoid the core charge.
$ 899 Do-It-Yourself Supercharger Rebuild Service Kit
$ 550 Core Exchange Deposit
_____
$1,449 Total for this item
-$550 Refund of core deposit once reusable exchange rotor assembly is received from you
_____
$899 Total price of this item once we have received your used rebuildable rotor assembly for core exchange, after you receive the refund of core deposit.

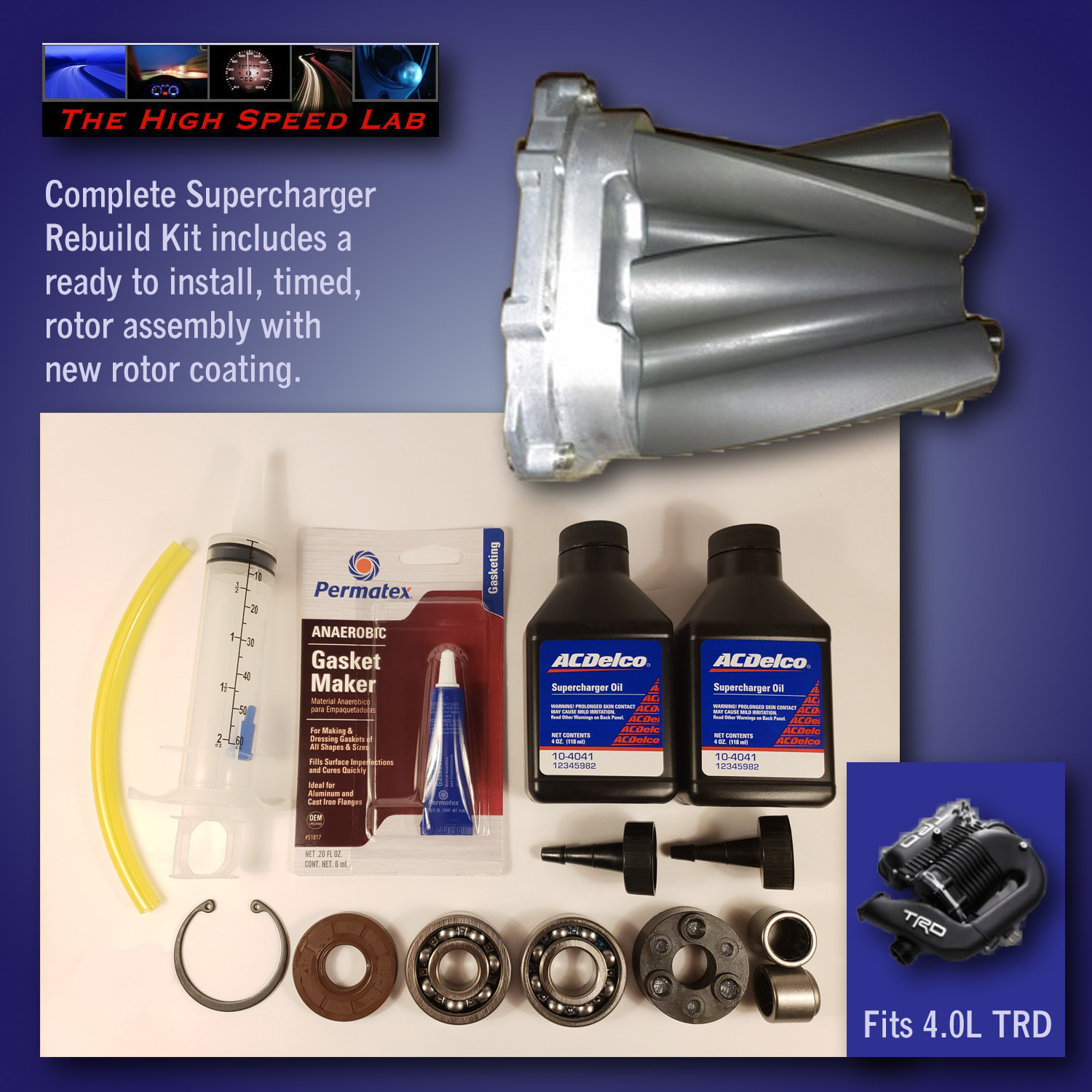

This Do-It-Yourself Kit includes:
A READY TO INSTALL Timed, Coated Eaton M90 Gen5 Rotor Assembly for use with OEM and aftermarket Supercharger Kits. This item is a Re-manufactured Eaton M90 Gen5 Rotor Assembly and comes with a FREE Do-It-Yourself Kit.
FREE Do-It-Yourself OEM Eaton Snout Nose Drive Rebuild Kit ($129 value)
FREE Pair of rotor needle bearings for you to install in the housing ($24 value)
Price is plus packaging and shipping for USA addresses.
This item does not include the core exchange deposit if you need the kit to ship before your rotor assembly arrives. We can ship our DIY rotor assembly kit before we receive your core used rotor assembly. With the return of a reusable rotor assembly core, the deposit will be refunded. See more details here below.
Contact our Shop Foreman for our current core inventory.
Buy this item for your supercharger 2005-2015 Toyota Tacoma and 2007-2009 Toyota FJ Cruiser to receive:
A Genuine Eaton M90 Gen5 Rotor Assembly that has been professionally re-manufactured with new rotor coating, timing gears installed, ready to be slid into supercharger housing by you or a technician. This rotor assembly fits the Toyota 4.0L TRD supercharger with black exterior.
A Do-It-Yourself Kit with all the parts and materials to complete the rest of the complete supercharger rebuilding service yourself. This FREE parts and materials kit includes: FREE Eaton snout nose drive rebuild kit ($165 retail value) and pair of housing needle bearings ($24 retail value)
1. Two AC Delco supercharger oil, 4 ounce bottles (2)
2. Permatex anaerobic gasket maker for aluminum flanges, a red sealer (1)
3. Eaton coupler, prepared with installation grease (1)
4. Brand name Premium back nosedrive ball bearing (1)
5. Brand name Premium front nosedrive ball bearing (1)
6. Brand name Premium Viton front nosedrive double-lip seal, prepared with installation grease and oil on the seal lip’s internal diameters (1)
7. Nosedrive Rotoclip, a quality replacement of original wire retaining clip (1)
8. Plastic Syringe with tubing for oil extraction (1)
9. Needle Bearing Pair, Single-seal* cup-type needle bearings, to install sub-flush below surface of interior housing face that bearings are being pressed into (2)
Packaging and shipping costs to a USA address is in addition to this price.
International customers will need to contact us for shipping information.
Contact us for current estimated estimated completion timeframe. Our Production Manager can be reached to confirm availability and turn around time. (314)277-8495 or to purchase by phone.
These TRD 4.0L superchargers are in high demand. Not necessarily easy to come by. So our Shop Foreman designed this kit to be the quickest way to put a supercharger you already own back into service, with much of the work performed by you or your mechanic, to help with cost and turnaround time savings. This kit is especially great for automotive repair shops where the mechanic can keep the cost and turnaround time down by completing the less difficult work in his repair facility.
This item is a do-it-yourself complete rebuild kit with a pre-built and timed rotor assembly. It is ready to install into your supercharger housing by you or your mechanic. It comes with a parts kit to rebuild the Eaton M90 Snout Nose Drive. Also included is a pair of rotor shaft needle bearings that are quality controlled checked and ready for installation by you or your mechanic into the supercharger housing.
Or...
To have a supercharger completely serviced by us, you send your core in for the rebuild. We have a Complete Rebuild Service which you can send your supercharger in to have performed. In this way you avoid a large core charge I would have to hold if I sent you a completely rebuilt and ready to install supercharger to you before a core supercharger is received by us.
Our do-it-yourself Complete Supercharger Rebuild kit can save you hundreds of Dollars or gives a fantastic potential profit margin for an automotive dealership repair shop.
This item is a rotor assembly that has been newly re-manufactured with the rotors newly re-coated and precision-timed. Currently, it comes with a Complete Supercharger Service Rebuild Kit (an estimated $200 retail value) that includes all the parts needed for the complete service of the supercharger.
This item is for an Eaton M90 Gen5 which shares the same bearing plate as some M112 superchargers but the M112 rotors are longer. The M112 kits are available, too. Contact us to ask about our other supercharger rebuild kits. The pictures show our timed rotor assembly with our Interference-fit Rotor Coating. Our Rotor Coating is very consistent because it is thickness checked during quality control inspection to ensure even application. Not all rotor coating available in the market is precision checked like ours. You can see that the bearing plate is precision CNC machined to set the ideal tolerances, giving you optimum performance. If you are not sure which you need, please email a photo of yours and we can help you identify it.
For the Shop Technician or DIY Do-It-Yourself person, this kit includes the Embree Specialty Machine Eaton Re-manufactured Rotor Assembly. Get the same Premium Quality bearings and seals used in our ESM Complete Rebuild Service. This item has been designed by our Shop Foreman, based on years of successfully servicing Eaton superchargers to give you the Best Chance at Success (TM) when performing the supercharger rebuild service yourself.
Buy this item because the rotor assembly is already professionally re-manufactured for you. Our rotor assembly bearings are retained by an Aluminum plate designed and CNC manufactured specifically for this application by Embree Specialty Machine. This is the only method of bearing retention we trust for our supercharger rebuilding services. Now, you can use this professional, reliable method to completely rebuild your Eaton supercharger yourself, saving you time and money. NO ALUMINUM WELDING REQUIRED. A U.S. Patent has been applied for by us to protect this, our bearing retention process from unauthorized use by anyone but the designer of the process or his legal beneficiaries, Patent Pending.
Our rotor assembly is built to the exact same specifications we use when we rebuild a supercharger at Embree Specialty Machine. To assist you in your assembly work, the tolerances are listed at the top of this section. All bearings and seals used are upgraded from the original part specifications and most importantly, the rotor seals are now a Double-lip Viton.
Here are a few details that may help you identify the supercharger you have.
The later Eaton M90 Gen5 TRD supercharger is usually painted Black instead of Alpine Grey. The upper and lower intake manifold is cast on to the supercharger housing. The nose drive has part of the intake runner cast onto it with a large TRD in raised letters.
The Eaton M90 Gen5 has 8 bolts in the Nosedrive bolt circle. With the Gen 1, 2 & 3 Eaton superchargers, this is a simple matter to determine because the Eaton M90 Gen3 has 9 bolts holding the Snout on. The M45 Gen3 and M62 Gen3 only have 8 bolts.
Providing a phone number we can contact you at if there are any questions about your order is always helpful and leads to better service. Of course we never have time to spam and never share information.
If your bearing plate looks way different then just email us some phone pictures and ask our Shop Foreman to assist you in determining the supercharger type you have and what kit you need.
It is your responsibility to insure you request the correct rotor assembly. It is not always easy to be sure what you have because there are so many variations to the Eaton superchargers. With this in mind we want you to know that if the rotor assembly that arrives does not match the one you need to replace, contact us immediately. Do not panic and remember we have offered this because we want to help you get the right parts. We want you to have the right one and will work with you to exchange it when an honest mistake is made. Please help us by making your best effort to be sure which rotor assembly you need before you place your order. It is okay to tell us in your order email that you are not sure what you need. It can really help us to help you if you would email us a photo, and for this cell phone photos work great. We can prevent delays and frustration by looking at your snapshots for 5 minutes instead of all the extra work to exchange the part. Let us help you up front if you aren't 100% sure you know what you have and what you need.
THIS ITEM IS FOR:
Eaton M90 Gen5
THIS ITEM IS NOT FOR:
Eaton M45 Gen3, Eaton M45 Gen4, Eaton M45 Gen5
Eaton M62 Gen3, Eaton M62 Gen4, Eaton M62 Gen5
Eaton M90 Gen3, Eaton M90 Gen4
Eaton M112 Gen4, Eaton M112 Gen5
Eaton M122
Eaton TVS 4-lobe
This kit is NOT for these supercharger model/generations because they use a different rotor assembly bearing plates. Please contact us to get more details about a supercharger rebuild kit for these or other Eaton Models that are not listed here. Contact us by email to speak with the Shop Foreman. You can send us a picture of your supercharger for help in identifying yours.
This kit contains an Embree Specialty Machine re-manufactured rotor assembly. This item is Quality Control checked. As an informed DIY Do-It-Yourself person, you are purchasing this component to complete the rebuild service yourself. You are making the decision to take upon yourself the responsibility of the successful outcome. If you decide at any point to have a professional perform this service, send it in. The rotor assembly is correct when it leaves the shop. Damage that occurs after the point where it is packaged for shipment from us, is completely on the mechanical person performing the rebuild service, whether you or your mechanic. No refunds will be given however, if you run into issues, contact us first because we can help.
Will this fit the vehicle application of the supercharger being serviced?
This kit is applicable for Eaton M90 Gen5 superchargers used in some Toyota TRD 4.0 Liter V6 1GR-FE engine vehicle applications. For complete list of compatible vehicles see compatibility chart. Please contact us if you need help to make sure your supercharger is this kind. We have friendly, helpful technical people available by email or phone to answer the lingering questions you have. Just ask.
What can be done to confirm this is the right item for the supercharger's vehicle application?
We are happy to help you make sure you order the right part for the job. If you have ANY DOUBTS about this being the one your application needs, please email us before you purchase this item. Include a cellular phone photo of the one you are replacing, for the Shop Foreman to look at. Also, include the year, make, model and trim level to assist in the identification of the vehicle application.
What is done to the Embree Specialty Machine's newly re-manufactured Eaton Supercharger Rotor Assembly?
We completely disassemble the rotor assembly plate including removing the old seals and bearings. The bearing plate is carefully measured and paired with a newly re-coated pair of rotors. The ESM rotor coating is our special, exclusive interference-fit rotor coating, similar to Piston Skirt coating in durability and environment parameters. Our coating is durable in harsh environments found in configurations using nitrous injection systems, methanol or water injection. Then the rotor assembly plate is CNC machined to accomplish correct rotor timing and front rotor-to-bearing plate clearance, set at 0.006" to 0.009" and the mesh is split +/- 0.001" for optimum supercharger operation. Both rotor seals and rotor ball bearing have been replaced.
What does this item include?
This item includes the same high quality parts we use in our Embree Specialty Machine rebuild services.
Embree Specialty Machine re-manufactured Eaton M62 Gen3 supercharger rotor assembly
ESM Supercharger Oil suitable for the newly upgraded double-lip Viton rotor assembly seals, 8 oz.
Permatex anaerobic red sealer for aluminum flanges, gasket maker
Two (2) single-seal needle bearings packed with optimal choice grease and ready for installation (Upgrade available, request total from seller for double-lip seal needle bearings)
Coupler
Back Nose Drive Snout ball bearing
Front Nose Drive Snout ball bearing
Front snout seal with double-sealed internal diameter
Snout Rotoclip, a quality replacement of original wire retaining clip
What are the specifications for the ESM Rotor Coating?
Superior, our Rotor Coating is very consistent because it is thickness checked during quality control inspection to ensure even application. Not all rotor coating available in the market is precision checked like ours. We check them so carefully after coating because the rotor assembly will work best and most quietly with proper thickness of rotor coating. You can see that the bearing plate is precision CNC machined to set the ideal tolerances, giving you optimum performance.
What does this supercharger rebuild kit process include?
You, the buyer will have the parts that you need to replace the rear rotor needle bearings, rebuild the nose drive snout and install the rotor assembly yourself.
Technical support from the Shop Foreman is available during normal business hours by contacting us through email or phone (314)277-8495
What are some important process points that can help with the rebuild process?
The inside race of the front nose drive ball bearing must be supported when installing the shaft. This means the shaft must be installed before the front nose drive seal is installed because the front nose drive seal will cover the inner race of the front nose drive bearing when the seal is installed. If you do not support the inner race, it will result in installation damage to the ball bearing. A clicking noise in the bearing after installation is a symptom of this.
Never use ball bearings with dust covers because in this application they are used in an oil bath.
Should a contact phone number be provided by the buyer when the item is ordered or purchased?
Providing a phone number is always helpful and leads to better service because we can contact you if there are any questions about your order. Of course we never have time to spam and never share information.
We recommend using Permatex Anaerobic Gasket Maker (PX#51817 NET .20 FL OZ or PX#51813 NET 1.69 FL OZ) which is designed for Aluminum flanges, available at some auto parts stores. Do not get any sealer or any debris in the rotors during installation. Do not use too much sealer or it will squeeze out into the rotors which will damage the supercharger. Completely clean any old sealer off the surfaces you are connecting the supercharger to because leaving the old sealer on the flanges will distort the supercharger housing when bolted together and cause failure. Follow the instructions on the package of the sealer for best results.
What is the tolerance goal for my assembly to work properly?
You will want a minimum gap of 0.006" to 0.010". The gap can be greater than 0.010" however this wide of a gap will allow for air charge leakage. The smaller the gap between the rear housing and the back rotor faces, the tighter the supercharger seal. The rotors should never touch each other or the housing internal bores, anywhere at all.
What Warranty Coverage is included with my purchase?
Our One-Year Warranty and our long-term eBay reputation will be your peace of mind.
Core Charge Details (YOU HAVE A CHOICE!):
CHOICE (A):
Purchase the item choice which includes a core charge. The new item will go out as soon as possible and before your core is received. You can keep your core if you prefer. We hope to encourage you to return the core by including a core charge. If you would like to send it in for a refund of the core charge, return ship it back to us within 15 days of receipt of the item. The cost of return shipping is always the buyer's responsibility so ship as cheaply as possible. The box our kit is sent to you in is built tough enough that you can use it to return your used rotor assembly core. So there is no need for you to round up a box and packing material. We want this to be easy for you. After you ship it, email me a tracking number to help identify yours by alerting us to its return. The core charge due will be refunded following the Shop Foreman's inspection check in of the returned core, normally 10-20 business days depending upon the shop load when the core is received. Damage can affect the core refund if it makes the core parts unusable for the next customer. See choice (B) to understand your options.
CHOICE (B):
To avoid the core charge, you purchase this item that does not include the core charge and then would then ship your core immediately. Shortly after our receipt of the core, we will ship the new item out. In this way, we can help you avoid the core charge while continuing to keep costs low for everyone.
If you have any questions, before you buy this kit please contact us because we want to send you the right part the first time. A few quick emails can make all the difference in the long run. This will give us the chance to address concerns before we both have invested time and money. Also, you may have the same question as someone else which we can share by posting answers for others to learn from. Our ESM supercharger rebuild kits are designed by the Shop Foreman for your Best Chance at Success (TM).
And as always, we are here if you decide it might be in your best interest to have a professional supercharger re-manufacturer service it. Yes, we can rebuild it even if you have started the service yourself. Try not to tear anything up and package all the parts up carefully.
Get started today on your supercharger rebuild service, knowing you have choices to fit your budget, time frame, mechanical skill level and available shop tools.
We appreciate your business.
The High Speed Lab Supercharger Shop (TM) (314)277-7414
